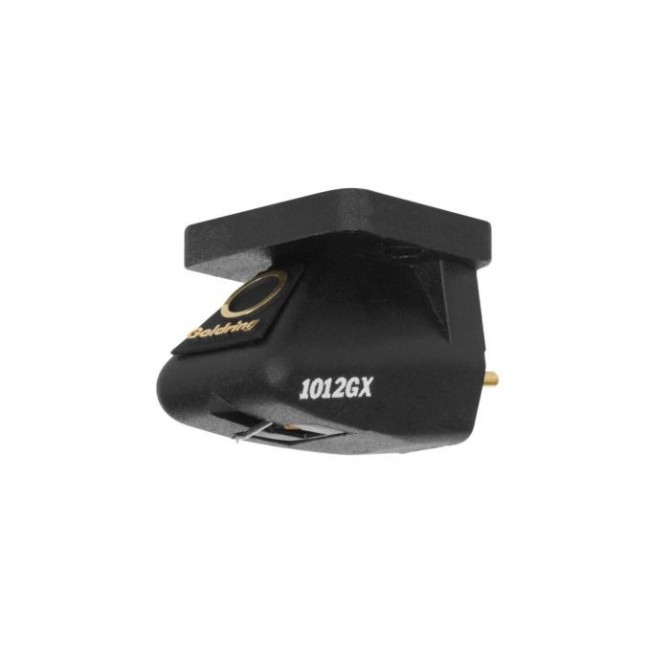

1012GX Moving Magnet Cartridge

Features

• Frequency Response: 20 Hz -20 kHz ±3 dB
• Channel Balance: within 2 dB @ 1 kHz
• Channel Separation: better than  25 dB @ 1 kHz
• Sensitivity: 6.5 mV ±1.5 dB, 1 kHz @ 5 cm/sec
• Static Compliance: 24 mm/N (lat); 16 mm/N (vert)
• Equivalent tip mass: 0.45 mg
• Vertical Tracking Angle: 24°
• Stylus Radius: Elliptical
• Stylus Type: Replaceable
• Load Resistance: 47 kΩ
• Load Capacitance: 150-200 pF
• Internal Inductance: 570 mH
• Internal Resistance: 660 Ω
• Cartridge Mass: 6.3 g
• Cartridge Mass (inc. fixings): 7.6 g
• Fixing Centre: 0.5″ (12.7 mm)
• Playing Weight: 1.5 – 2.0 g (1.7 g nom.)
• Replacement Stylus: 1006 – D0
